Hinge Measurements

Hinge measurements are of great importance in furniture design and door installation processes. Choosing the correct measurements ensures that the door opens and closes properly, as well as preventing sagging or damage over time. Each hinge type is manufactured according to specific standards based on its intended use, making it essential to select the appropriate type for the application. Even minor differences in millimeters can affect installation quality, particularly in hinges used for cabinet doors.

Hinge measurements include not only basic dimensions such as width and length, but also technical details such as hole diameter, hinge arm length, and opening angle. Accurate determination of these measurements is critical for achieving an aesthetic appearance and ensuring long-lasting use. In professional applications, planning is carried out using measurement tables that vary according to the type of hinge. This facilitates the production process and increases user satisfaction.

Hinge mounting dimensions, must be carefully determined for the correct alignment and smooth operation of the covers. Some basic points to consider during the installation process are as follows:

The screw location should be determined according to the cover thickness and excessive drilling should be avoided.
The hinge arm length should be compatible with the gap between the cover and the body.
The gap between the case and the cover should be adjusted so as not to obstruct the hinge’s opening angle.
The distance of the hole center from the edge is typically standardized at 21–22 mm, but may vary depending on the hinge type used.

Each of these details ensures ease of installation and maintains hinge performance over the long term.

Hinge Housing Dimensions

In order for hinges used in furniture and door systems to function properly, hinge housing dimensions must be determined with great care. Insufficient or incorrect measurements directly affect not only the quality of the installation but also the product’s lifespan and aesthetics. The placement of the socket is critical for ensuring that doors open and close smoothly without jamming, that the hinge’s opening angle is not compromised, and that the load-bearing capacity is not reduced.

CNC machines or precision drilling tools are typically used for cutting hinge sockets in furniture systems. Since each hinge type has different measurement standards, the preferred hinge must be determined at the very beginning of the design process. Otherwise, surface tension may occur, or the hinge arm may not function properly.

How to Measure Hinge Socket Depth?

The correct depth of a hinge socket is critical, especially for types that require recessed mounting. Excessive depth in recessed models such as pin hinges or cup hinges can cause the hinge to loosen, while insufficient depth can prevent the cover from seating properly. Therefore, high precision is required during measurement.

The following points should be considered before installation:

The diameter of the socket should be adjusted so that it fits snugly around the hinge body.
The depth should fully accommodate the hinge body without protruding above the surface.
Screw holes should be positioned according to the opening direction.
The hole axis should be aligned to maintain symmetry between the cover and the frame.

For example, in kitchen cabinets using door hinges, sockets with a diameter of 35 mm and a depth of 11.5–13 mm are typically preferred. These values may vary depending on the type of hinge and the thickness of the door.

Socket Standards According to Hinge Types

Each hinge type has a different purpose and mounting method. Therefore, the hole dimensions are defined specifically according to these differences. While models such as leaf hinges that are screwed to the surface generally do not require hole openings, fixed dimensions are mandatory for recessed hinges.

The following examples clearly illustrate this difference:

Flat hinge: Typically used on thin covers and applied directly to the surface.
Butterfly hinge: Preferred for aesthetic purposes, symmetry is critical during installation.

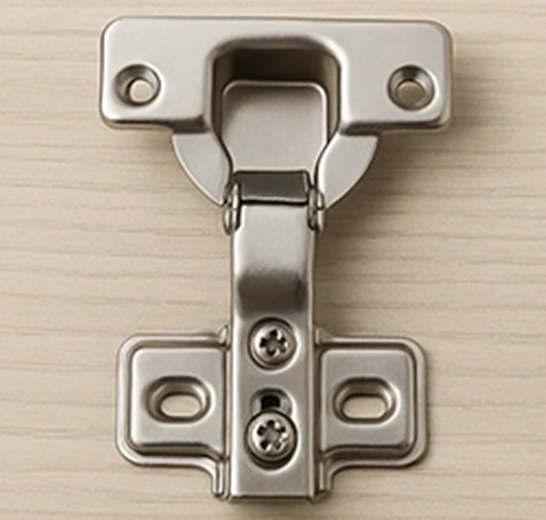

Cabinet hinge: Common in mass production, this type is compatible with standard hinge cups and available in models with opening capacities ranging from 110° to 165°.
Door hinge: Requires large and deep sockets due to its high weight-bearing capacity.

Before each application, the technical documentation provided by the hinge manufacturer must be carefully reviewed, and the socket’s diameter, depth, and position measurements should be tested using templates prior to installation. Otherwise, post-installation adjustments may result in both time loss and visual defects.
